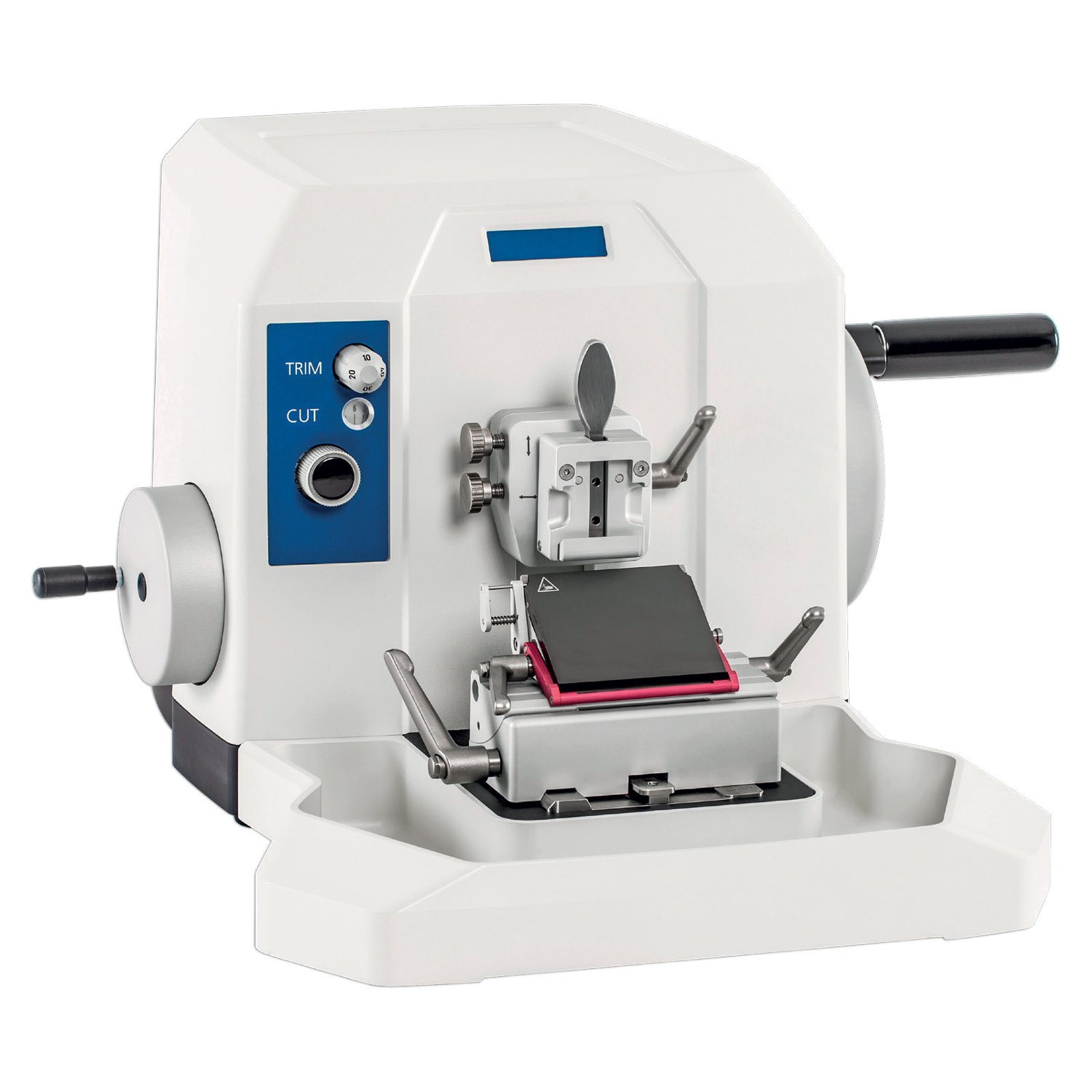

CUT 4062 Manual Precision Microtome

The manual precision microtome CUT 4062 is designed for all applications in routine, research or industry. Years of experience and customer input have contributed to create one of the best manual microtomes available.

The CUT 4062 combines highest precision with user friendliness as well as best comfort. Like all Slee microtomes, the CUT 4062 comes with a complete set of standard components which can be individually adapted to customer’s needs, ready to be used out of the box.

Features:

• Ergonomic design
• Spacious, integrated section waste tray
• Wide range of accessories
• Hand wheel lock in any position
• Blade holder levers changeable (for left-handed users)
• Specimen retraction with upstroke
• Section counter (optional)
• Second hand wheel brake (optional)
• Coarse feed wheel reversible direction (on demand)

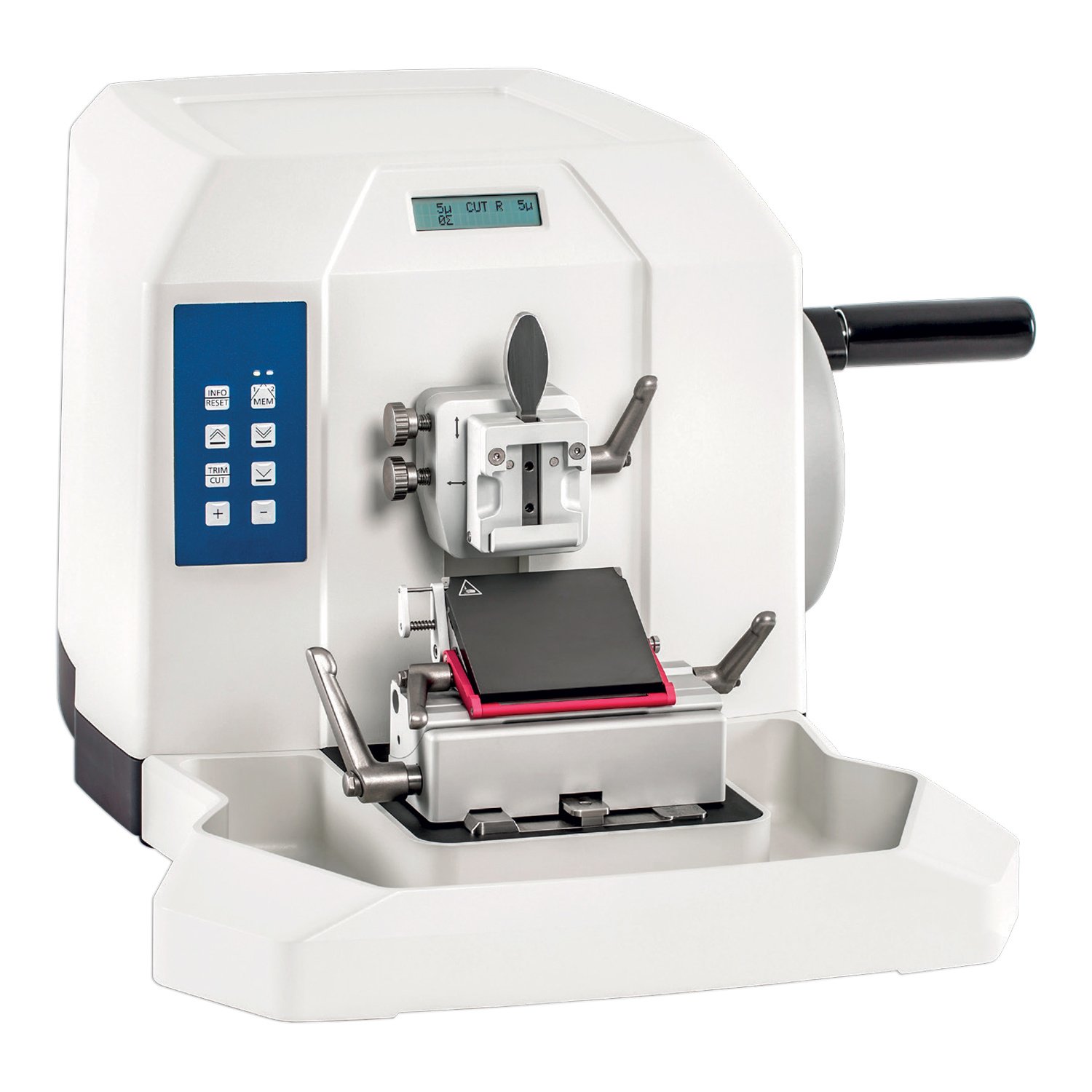

CUT 5062 Semi-Automatic Precision Microtome

The semi-automatic precision microtome CUT 5062 is designed for all applications in routine, research or industry. Years of experience and customer input have contributed to create one of the best semi-automatic microtomes available. The CUT 5062 combines highest precision with user friendliness as well as best comfort. Like all Slee microtomes, the CUT 5062 comes with a complete set of standard components which can be individually adapted to customer’s needs, ready to be used out of the box.

Features:

• Ergonomic design
• Spacious, integrated section waste tray
• Wide range of accessories
• Intuitive control panel
• Hand wheel lock in any position
• Blade holder levers changeable (for left-handed users)
• 2 operation modes (standard and rocking mode)
• Motorized trimming up to 750 μm, programmable
• Motorized advance / return of specimen (2 speeds)
• Display of section counter, section sum and remaining travel
• Tip function for precise specimen approach
• 2 specimen feed memory positions
• Variable retraction
• External control panel (optional)
• Second hand wheel brake (optional)

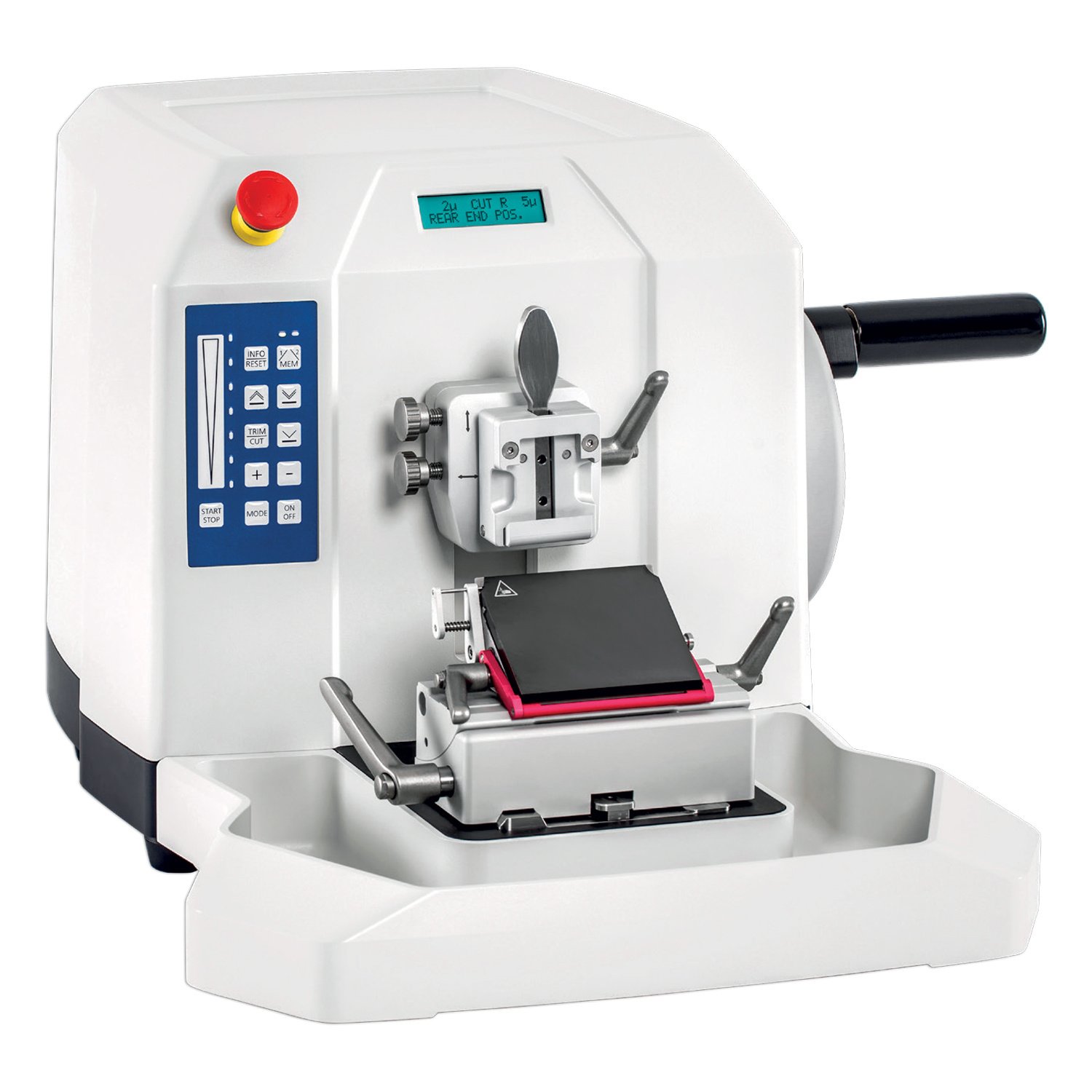

CUT 6062 Fully-Automatic Precision Microtome

The fully-automatic precision microtome CUT 6062 is designed for all applications in routine, research or industry. Years of experience and customer input have contributed to create one of the best fully-automatic microtomes available. The CUT 6062 combines highest precision with user friendliness as well as best comfort. The motorized sectioning combined with innovative features and accessories make the CUT 6062 unique. Like all Slee microtomes, the CUT 6062 comes with a complete set of standard components which can be individually adapted to customer’s needs, ready to be used out of the box.

Features:

• Ergonomic design
• Spacious, integrated section waste tray
• Wide range of accessories
• Intuitive control panel
• Hand wheel lock in any position
• Blade holder levers changeable (for left-handed users)
• High efficient motorized sectioning (section window/variably adjustable cutting speeds)
• 7 different operation modes (motorized: continuous, program, single step, step, window | manual: standard and rocking mode)
• Motorized trimming up to 750 μm, programmable
• Motorized advance / return of specimen (2 speeds)
• Display of section counter, section sum and remaining travel
• Tip function for precise specimen approach
• 2 specimen feed memory positions
• Variable retraction
• External control panel (optional)
• Second hand wheel brake (optional)

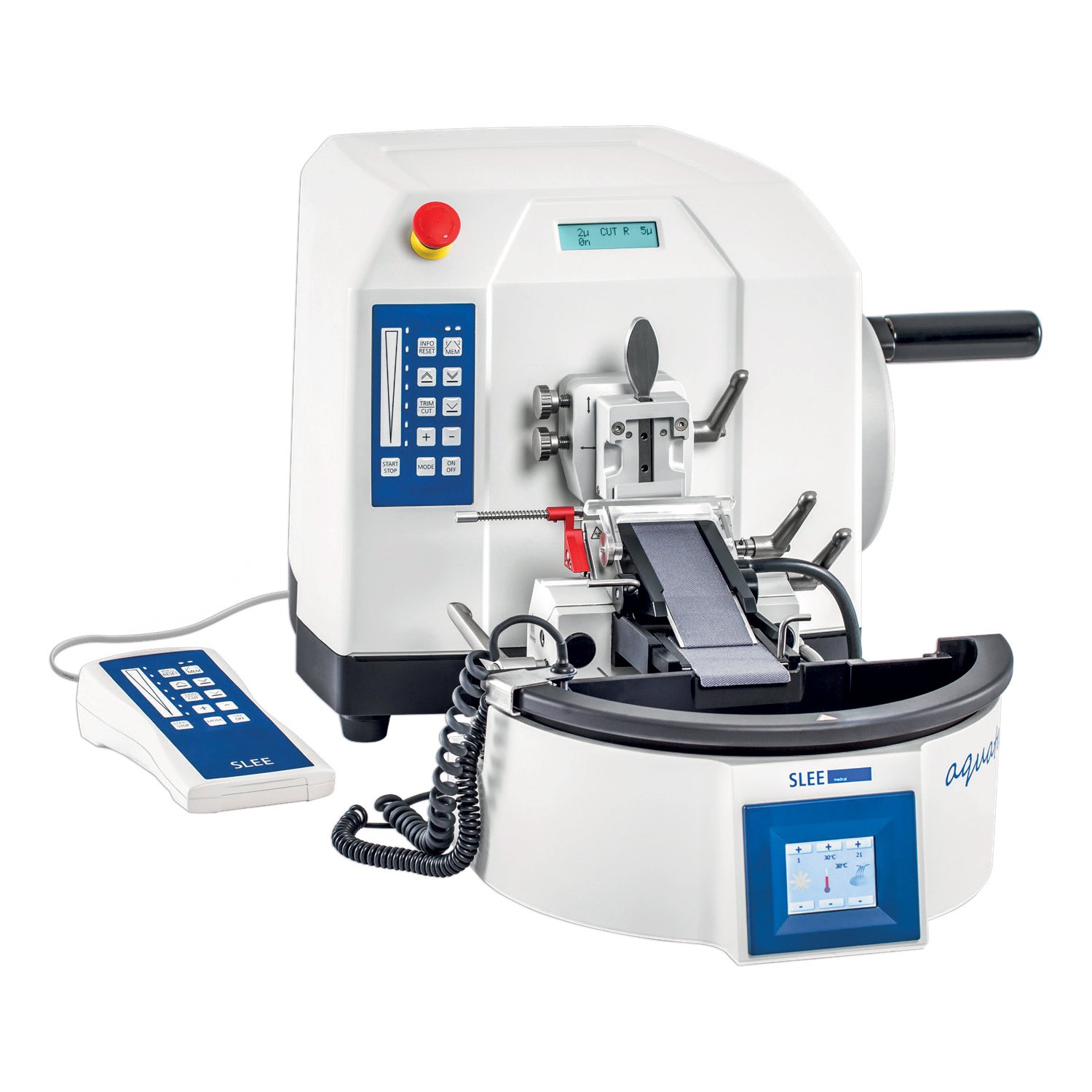

Aquatec Transfer System

The Aquatec system provides the solution to the daily challenges of cutting demanding paraffin sections. Already during the cutting process, the section is stretched due to the laminar water film. The volume flow of the water film can be adjusted at any time according to the cutting requirements.

When the transfer bridge is open, the damp cutting waste is led straight into the waste container and condenses there by collapsing in on itself. This massively reduces the volume. Frequent emptying of the cutting waste container is no longer necessary.

With the bridge closed, the selected section slides gently directly into the temperature-controlled water bath. In the illuminated water bath the section can be evaluated and selected. The high-quality sections can now be easily handled in the accustomed manner. All settings are carried out via the touch display on the front.

Features:

• Adjustable laminar water flow for perfect section stretching
• Significant reduction in the volume of section waste
• Easily removable waste tray
• Simplified cutting and simple creation of section ribbons
• Freely positionable unit for section illumination, dimmable
• Intuitive control via touchscreen
• Display with lock function to prevent unauthorized changes of device settings
• Integrated blade ejector
• Integrated power supply and electronic control
