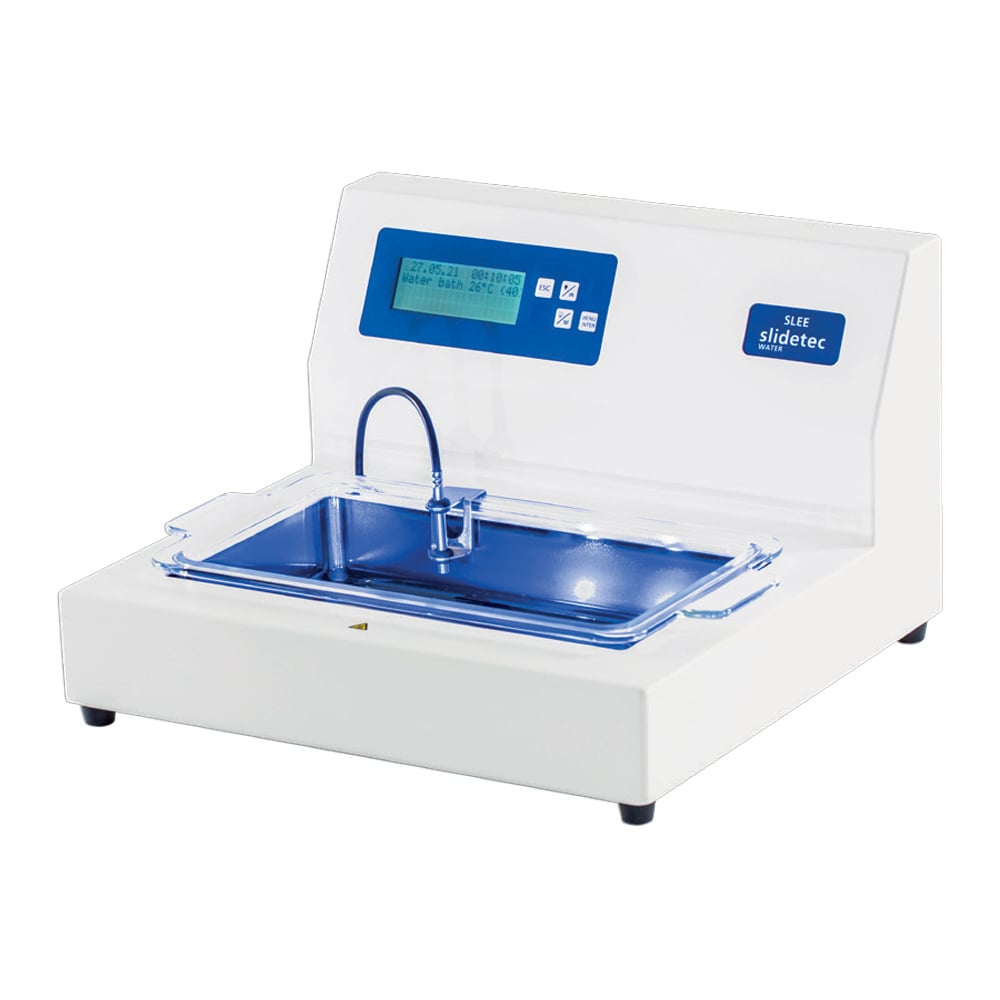

Slidetec Water

The Slidetec Water water bath is designed for stretching paraffin sections in histology laboratories.

The removable glass tray is easy to clean. The black heating tray and the integrated water bath illumination (LED, white / blue) provide excellent contrast for optimal detection of sections on the water surface. The optimized heat transfer enables a power consumption of only 0.32 KW/h.

Features:

• Water Bath Volume: 2 Liter
• Temperature Range: RT up to 60°C
• Electrical Parameters: 115 V, 60 Hz | 230 V, 50/60 Hz
• Consumption: 300 W
• Dimensions (W x D x H): 350 x 370 x 230 mm
• Weight: 10 kg

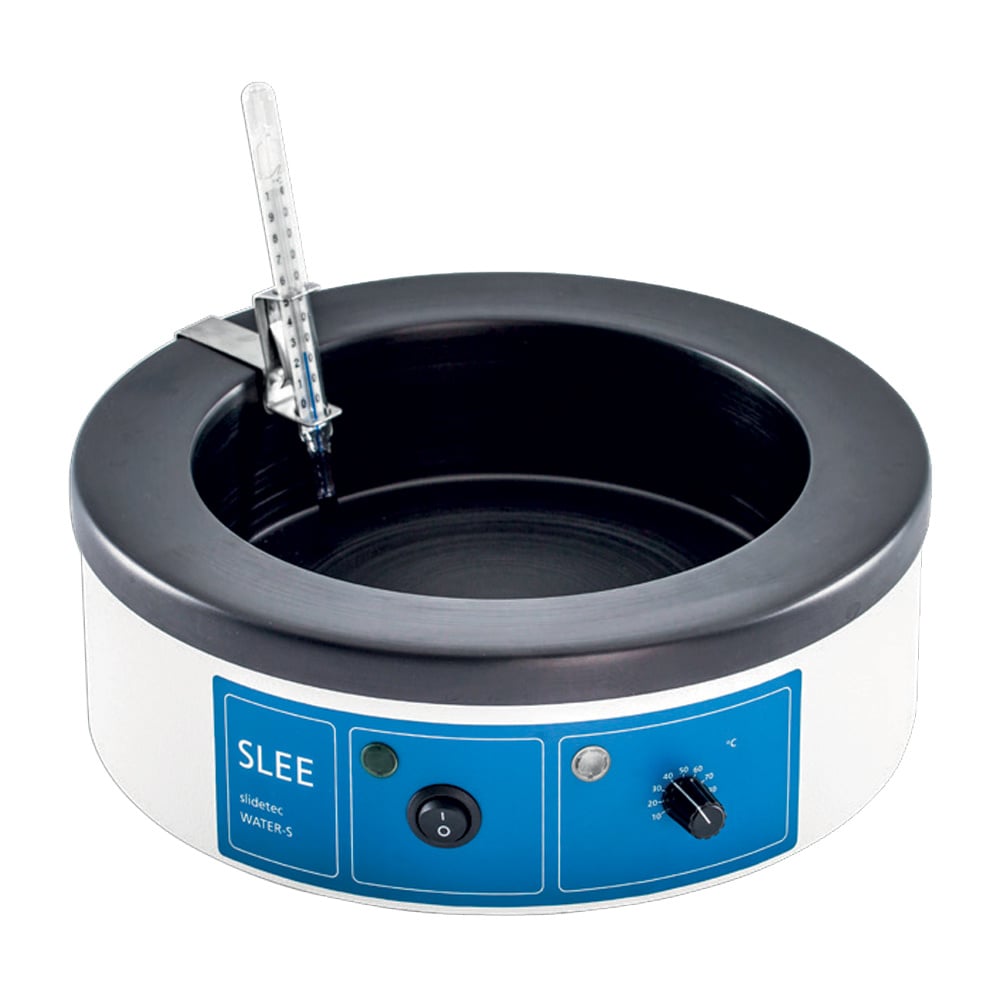

Slidetec Water S

The paraffin stretching bath Slidetec Water S is a specialized bath for histological, pathological, clinical and bacteriological laboratories for stretching and drying cut tissue samples. The outer housing is made of powder-coated aluminum sheet. The body of the bath as well as the edges for drying the mounted paraffin sections are made of black anodized aluminum sheet.

The units can be controlled via an electro­mechanical tem­perature con­troller with capillary tube sensor in the tempera­ture range from 5°C above room tem­pera­ture up to approx. 80°C. They are protected by a thermal fuse in the case of dry running. The bath is heated indirectly. Plate radiator, thermostat sensor and temperature fuse are located under the body of the bath.

Features:

• Water Bath Volume: 1.6 Liter
• Temperature Range: RT up to 60°C
• Electrical Parameters: 115 V, 60 Hz | 230 V, 50/60 Hz
• Consumption: 300 W
• Dimensions (W x D x H): 280 x 280 x 100 mm
• Weight: 2 kg

Slidetec Water / Heat Water Bath & Slide Warmer

The Slidetec Water / Heat water bath & slide warmer combination is designed for stretching paraffin sections and subsequent drying of the sections on slides in histology laboratories.

Safety features together with persuasive ergonomic design guarantee high process reliability and convenient use. The combination is also available as stand-alone units as Slidetec Heat and Slidetec Water.

Features:

• Water Bath Volume: 2 Liter
• Capacity Slide Warmer: 30 Slides
• Temperature Range: RT up to 60°C (water bath), RT up to 80°C (slide warmer)
• Electrical Parameters: 115 V, 60 Hz | 230 V, 50/60 Hz
• Consumption: 600 W
• Dimensions (W x D x H): 370 x 560 x 230 mm
• Weight: 18 kg
